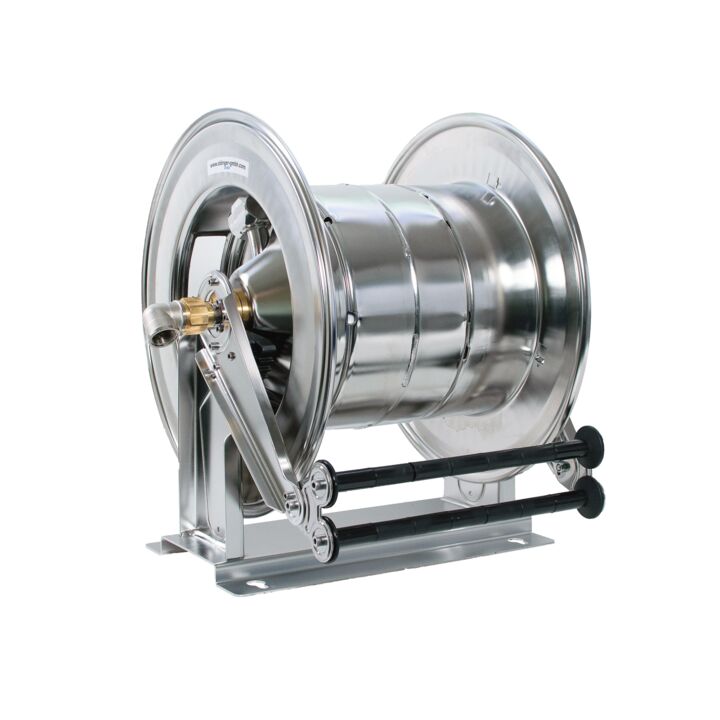

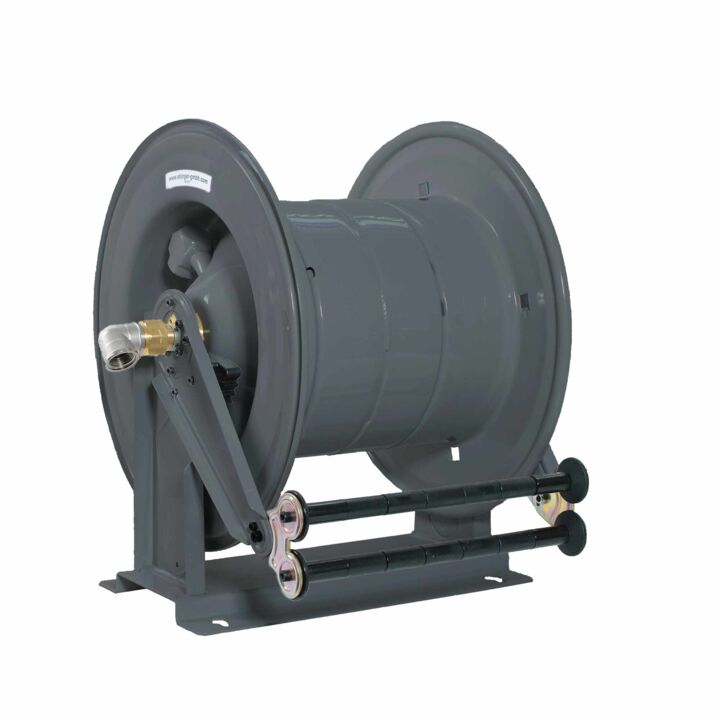

Hose reel OSM710
| Article Number | Medium | Material Reel | Work Pressure (bar) | Connection (mm) |
| ES710102 | Cold water | Steel Painted | 10 | 15,5 |
| ES710103 | compressed air | Steel painted | 17 | 12,5 |
| ES710130 | Cold Water | Steel Painted | 20 | Excl. slang |
| ES710131 | Cold water | Steel painted | 10 | 19 |
| ES710132 | Cold water | Steel painted | 9 | 25 |
| ES710133 | compressed air | Steel Painted | 15 | 19 |
| ES710233 | High Pressure | Steel painted | 100 | 19 |
| ES710234 | High Pressure | Steel painted | 100 | 25 |
| ES710633 | Diesel | Steel painted | 10 | 25 |
| ES710932 | Oil | Steel painted | 150 | 19 |
| ES714100 | Cold Water | stainless steel304 | 20 | Excl. slang |
| ES714103 | Compressed air | stainless steel304 | 17 | 12,5 |
| ES714130 | Diesel | stainless steel304 | 10 | Excl. slang |
| ES714131 | Cold water | stainless steel304 | 10 | 19 |
| ES714132 | Cold water | stainless steel304 | 9 | 25 |
| ES714234 | High Pressure | stainless steel304 | 100 | 25 |
| ES714633 | Diesel | stainless steel304 | 10 | 25 |
| ES714634 | Diesel | stainless steel304 | 100 | 25 |
| ES714932 | Oil | stainless steel304 | 150 | 19 |
| ES714933 | Oil | stainless steel304 | 150 | 25 |
Spring-rewind mechanism
– Latching system
– Fixed or swiveling mounting bracket
– Adjustable arms with roller guide
– Mountable in any position
– Max. 60m hose with max. diameter of 25 mm
Extra specifications:
– Spring-rewind mechanism
– Latching systems
– Fixed or swiveling mounting bracket
– Adjustable arms with roller guide
– Mountable in any position
– Max. 60m hose with max. diameter of 25 mm
Additional information
| Brand | OSM |
|---|---|
| Medium | Cold water, Compressed air, Diesel, High-pressure air, Oil |
| Working pressure (bar) | 9, 10, 15, 17, 20, 100, 150 |
| Reel Material | SS304, Steel varnished |
| Swivel Material | Steel |
| Country of Origin | Germany |
| HS Code (Intrastat) | 73269098 |
