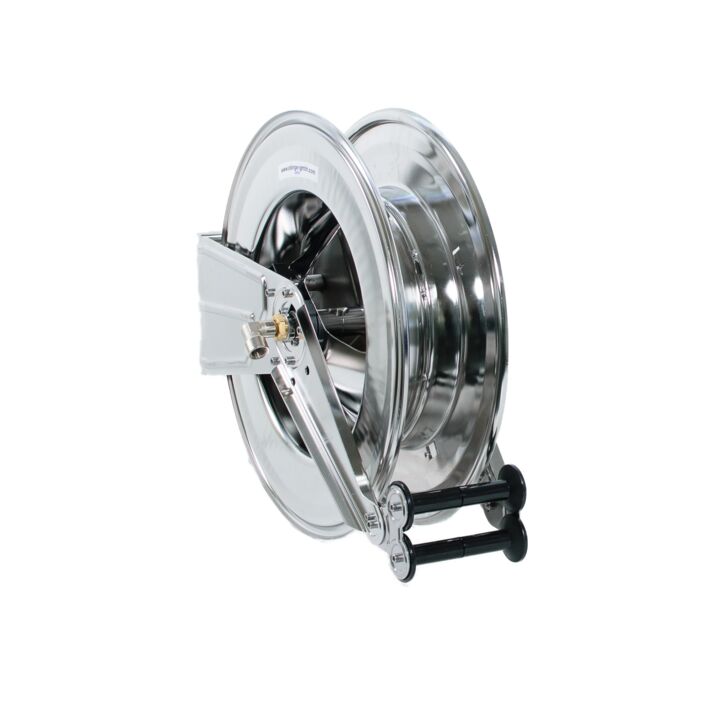

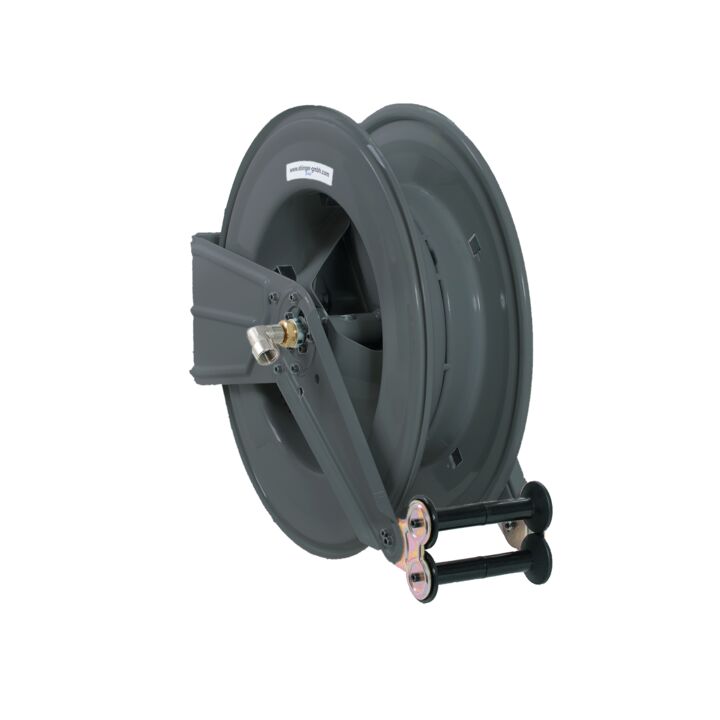

Hose reel OSM510
| Article Number | Medium | Material Reel | Work Pressure (bar) | connection (mm) |
| ES510101 | Cold Water | Steel painted | 12 | 12,7 |
| ES510102 | Cold Water | Steel Painted | 10 | 15,5 |
| ES510103 | compressed air | Steel painted | 17 | 12,5 |
| ES510103A | compressed air | Steel Painted | 17 | 10 |
| ES510104 | Hot water | Steel painted | 10 | 13 |
| ES510300 | High Pressure | Steel Painted | 200 | Excl. slang |
| ES510302 | High presssure | Steel painted | 200 | 10 |
| ES510401 | High Pressure | Steel painted | 350 | 10 |
| ES510502 | Fats | Steel painted | 600 | 10 |
| ES510601 | Diesel | Steel painted | 10 | 12 |
| ES510700 | welding gas | Steel painted | 20 | Excl. slang |
| ES514101 | Cold water | Stainless steel304 | 12 | 12,7 |
| ES514302 | High Pressure | Stainless steel304 | 200 | 10 |
| ES514401 | High Pressure | Stainless steel304 | 350 | 10 |
| ES514601 | Diesel | Stainless steel304 | 10 | 12 |
Extra specifications:
– Spring-rewind mechanism
– Latching system
– Fixed or swiveling mounting bracket
– Adjustable arms with roller guide
– Mountable in any position
– Max. 25m hose with max. diameter of 25 mm
Extra specifications:
– Spring-rewind mechanism
– Latching systems
– Fixed or swiveling mounting bracket
– Adjustable arms with roller guide
– Mountable in any position
– Max. 25m hose with max. diameter of 25 mm
Additional information
| Brand | OSM |
|---|---|
| Medium | Diesel |
| Reel Material | Stainless steel |
| Swivel Material | Steel |
| HS Code (Intrastat) | 73269098 |
| Country of Origin | Germany |
